BlackBox Advanced AIS 140 IRNSS Device
The Indian Government created the Intelligent Transport System (ITS) under the Automotive Industry Standard-140 (AIS 140) with an aim to improve and ensure the efficiency of the transport system.
It requires all public transportation systems, including trucks, autos, taxis, school buses, and other commercial vehicles, to have the AIS-140 GPS Tracker System.
The most consistent use of AIS-140 standards, as well as rigorous adherence to them, can aid in the reduction of on-road congestion, minimize environmental impact and improve traffic management.
Vehicles that fall under this norm
India’s government mandates that all commercial vehicles, including private and public transit, must be AIS certified.
- Inner Public Transport: Buses that operate within the city.
- Cabs: Car and taxi owners and also fleet owners.
- Intercity Public Transport: Buses that undertake long-distance travel between cities.
- Institution: Institutions that provide bus services.
BlackBox – Pioneer in the GPS-based Vehicle Tracking and Management Solutions in India
Blackbox launched the market-leading Advanced AIS 140 IRNSS Device (Approved and Certified by Govt. of India) to track, locate and regulate any vehicle with ease.
| GSM Specifications | |
| GSM | M66- Quectel Quad-band 850/900/1800/1900MHz Module |
| GPRS | Multi-slot Class 12, Speed 86Kbps |
| Protocols | TCP/IP |
| SIM | E-SIM / Neon SIM Card Optional |
| SMS | Text SMS OTA Command Support |
| FOTA | FOTA FTP support |
| GPS Specifications | |
| GPS | L86 Quectel GPS L1 Band (1575.42MHz ) GLONASS L1 Band ( 1601.71MHz ) SBAS : WAAS, EGNOS MSAS,GAGAN |
| GPS Channels | 33 (Tracking) / 99 (Acquisition) |
| Horizontal Position Accuracy | <2.5 m CEP |
| Velocity Accuracy | <0.1m/s |
| Acceleration Accuracy | 0.1 m/s² |
| Cold Start Warm Start Hot Start | <35s <30s <1s |
| Sensitivity Acquisition Tracking Reacquisition | -148dBm -165dBm -160dBm |
| Micro Controller and IO’s Specifications | |
| Micro-controller | Nuvoton NUC131 32 bit ARM Cortex™-M0 Processor With 50MHzPLL Clock, 32KB SRAM, 64KB Code Memory |
| Flash Memory | 64 M-Bit for Data logging up to 50000 data packs |
| Accelerometer / Gyro Meter | Yes 16G Sensitivity |
| Digital Inputs | One dedicated to Ignition Input Four other Active High Digital inputs One Rising edge detector with active low input for Emergency button |
| Analog Inputs | One Frequency Input for RPM reading / Optional with digital input 4 Four 12bit ADC channels read up to 28000 mV |
| Digital Output | Two Digital output active low up to 500mA |
| UART RS232 Port | One UART RS232 Port with configurable baud rate Use to read digital RS232 fuel Sensor data. It can be customize as per requirement as well |
| Tamper Switch | Yes To detect device cover open/close |
| Hardware Reset Switch | Yes |
| Device Power Specification | |
| Input Power Voltage | 8Volt to 36 Volt |
| Current Drawn by device | Max – 350mA @ 12Volt during Charging Nominal – 80mA @ 12Volt when internal battery is full |
| Li-ion Battery | 1100mAH backup up to 6 hours |
| LED’s | RED – Blinking When working on external voltage Yellow – GPS Signals Reception Blue – Blinking when device is active Green – Blinks in every 3 sec Normal working Twice blink device is sensing vibrations Fast Blinking when sending data to SERVER |
| Housing Specifications | |
| Housing Type | ABS Plastic optional Polycarbonate IP68 Certified |
| dimensions | Length : 100 mm Breath : 80 mm Height : 35 mm |
- Driver’s Behavior
- 4G Network
- Fuel Monitoring
- Box Tempering Alert
- Temperature Monitoring
- Vehicle Immobilization
- AC On/Off
- Ignition On/Off
- Engine On/Off
- Crash Detection
- RFID Interface
- RS232/485 Interface
- 4 Digital Inputs
- IP65
- CAN Data Reading from vehicle and specialized Transport
AIS 140 Devices Detailed Information
BlackBox Advanced AIS 140 IRNSS Device: AIS(Automotive Industry Standard) 140 is a proper set of guidelines for camera surveillance and vehicle tracking systems for safety purposes. This device improves the efficiency of the transportation system and decreases on-road congestion.
AIS 140 device uses GPS and GSM for tracking systems. It is mandatory to comply with this system otherwise the person has to pay heavy fines and disqualification of their transportation permit. AIS 140 GPS tracker includes real-time location tracking, in-vehicle video surveillance, emergency buttons, vehicle health monitoring, information about passengers in a vehicle, and automatic ticketing.
AIS 140 – Certified Devices

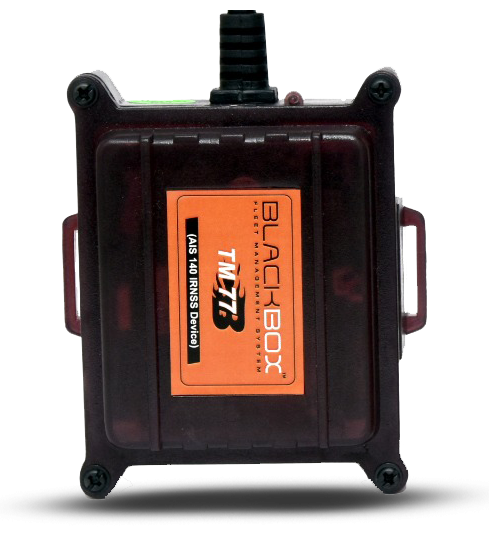

Blackbox TM 77 2G and Blackbox TM 100 4G are the two top devices for vehicle tracking and are made under the stringent AIS140 standards. Both the devices are available in CAN and non-CAN versions and are suitable for ample vehicle types. Blackbox AIS140 devices go beyond basic tracking features. Both TM77 and TM100 support integration with multiple add-ons, transforming your vehicles into smart, future-ready assets. Have a look at the add-on features of these devices which are scrutinized below:
Features & Add-ons available in Blackbox AIS 140 IRNSS Devices
Fleet Management Software Blackbox FMS has a set of useful features like vehicle management, service and document renewal reminders, repair tracking, and inventory control for tyres and parts. It also includes fuel management, order and employee management, supplier coordination, and ensuring efficient workflows. With robust customer management tools, Blackbox FMS enhances productivity and reduces operational costs.
Driving Behaviour Monitoring: BlackBox promotes responsible driving by improving both safety and profitability. Ensure a safer as well as more efficient driving experience by the most essential monitoring factors like vehicle speed, rash driving, rash turning, harsh acceleration and sudden braking etc.
Fuel Monitoring System for real-time insights into fuel consumption as well as theft incidents, tracking individual vehicle fuel economy, andenabling cost-effective fuel and fleet management. This will provide you with precise reports.
Geofencing: This represents a virtual geographical zone to track if the vehicles are leaving or entering that zone. With the addition of geofencing the system uses GPS signals about boundary breaches.
Panic Button: Panic Alert System is a fast and easy-to-access feature in case of emergencies, that ensures swift response and assistance when necessary.
Accident Call Alert: In case of an accident, the Blackbox AIS140 Device offers call alerts on registered contact numbers. This life saving feature also provides information about the vehicle’s live location that can help in saving precious lives.
Temperature Sensor: Blackbox AIS140 integrates with precise temperature monitoring system which is offered to ensure optimal conditions for goods or equipment with real-time temperature alerts.
Vehicle Immobilization: BlackBox provides an advanced vehicle immobilizer system for better security purposes. With this technology, the person can lock their vehicle’s engine from anywhere using their mobile phone.
VoiceBox: It provides voice alerts to drivers for several incidents such as overspeeding, sharp turns, and more to alert them.
Advantages of AIS 140
BlackBox is proud to be India’s 1st company to get AIS 140 IRNSS compliance device certification from ARAI. AIS140 is a proper set of guidelines for camera surveillance and vehicle tracking systems for safety purposes. There are several advantages of choosing AIS 140 which are mentioned below:
- Supports a fuel monitoring system to track fuel consumption and theft.
- It can be connected to an RFID reader, temperature sensor, panic button, and Immobilizer.
- It provides call alerts to the registered contacts and provides information about the vehicle’s live location. This is a life-saving feature that saves precious lives.
- The DC voltage protection of this AIS 140 device makes it compatible to flawlessly operate at high current or voltage. It can be installed in all vehicles.
- The Blackbox AIS 140 Device Comes with IP-68 certification, making it waterproof as well as dustproof.
- The Blackbox TM 77 2G and Blackbox TM 100 4G are available with CAN/OBD that gives reporting like Fuel Consumption Day Wise Monthly Report, mileage report, distance report, engine working hours report, engine temperature report etc.
- Provides a driving behavior monitoring system to monitor the driver’s behavior in terms of speed, rash turning, harsh acceleration, and sudden braking.
Revolutionizing Vehicle Security and Efficiency with Blackbox GPS AIS 140
GPS AIS 140 is a dynamic device manufactured by Blackbox GPS Technology, which is India’s first organization to get the AIS140 IRNSS certification from ARAI. GPS AIS 140 monitors every activity of the vehicle that helps in enhancing the safety and security of vehicles and people. Blackbox 140 device gives detailed reporting like Fuel Consumption Day Wise Monthly Report, mileage report, distance report, engine working hours report, engine temperature report etc. This also monitors plenty of other activities of a driver like speeding, rapid acceleration, harsh braking, and idling which ultimately ensures the safety of vehicles.
AIS 140 Devices Manufacturer in India
BlackBox is the most reputed manufacturer of Advanced AIS 140 IRNSS devices. All devices are certified with – IATF 1694:2016(quality management), ISO 9001:2015(Quality Management System), ISO 14001:2015(Environmental Management System), ISO/IEC 27001:2013(Information Security Management).
TM 77 device that is offered by Blackbox GPS Technology improves the efficiency of the transportation system and decreases on-road congestion. BlackBox has several certifications is the 1st company to get AIS140 certification. It is a leader in telematics as well as management solutions in India. Another point that makes BlackBox the best company for AIS 140 devices is that they have the maximum number of devices registered on the Vahan Portal of India, making it the first choice for telematics devices. So wait no more, if you are looking for AIS 140 VLTD, and manage your fleet easily, get in touch now.
