BlackBox TM22+
BlackBox TM22+ GPS Vehicle Tracker is a cutting-edge GPS Tracker for vehicles, mainly two-wheelers and four-wheelers. It is a cost-effective and scalable GPS tracking solution for fleet owners that makes monitoring vehicles easy. From updates about the vehicle’s real-time location to speed and distance covered, get all significant information right at your fingertips through the Blackbox App.
The Vehicle GPS Tracker allows for two-way communication, which aids in creating a clear communication path between the driver and the owner.
Superior quality is given, when the hardware and software come backed by BlackBoxGPS technologies.
| GSM Specification | |
|---|---|
| GSM / GPS | MC65 Quectel |
| Protocols | TCP/IP |
| SIM | E-SIM / Neon SIM Card |
| SMS | Text SMS OTA Command Support |
| FOTA | FOTA FTP support |
| GPS Specification | |
| GPS Channels | 33 (Tracking) / 65 (Acquisition) |
| Horizontal Position Accuracy | <2.5 m CEP |
| Velocity Accuracy | <0.1m/s |
| Acceleration Accuracy | 0.1 m/s² |
| Cold Start Warm Start Hot Start | <35s <30s <1s |
| Sensitivity Acquisition Tracking Reacquisition | -148dBm -165dBm -160dBm |
| Micro Controller and IO’s Specification | |
| Micro-controller | Nuvoton NUC131 32 bit ARM Cortex™-M0 Processor With 50MHzPLL Clock , 32KB SRAM , 64KB Code Memory |
| Flash Memory | 64 M-Bit for Data logging up to 50000 data packs |
| Inputs | Ignition input. Analog input Multifunction One active low input for Emergency button |
| Digital Output | One Digital output active low up to 500mA Second Digital output active low up to 100mA |
| Hardware Reset Switch | Yes |
| Device Power Specification | |
| Input Power Voltage | 8V to 60 V supply also |
| Current Drawn by device | Max – 350mA @ 12Volt during Charging Nominal – 50mA @ 12Volt when internal battery is full |
| Li-ion Battery | 500mAH backup up to 6 hours |
| LED’s | Green: – Blinks every 5 sec when working on external voltage. Blue :- 1. If long blinks i.e. continues on/off then searching for network 2. Short Blinks in every 1 sec then trying to connect with SERVER. 3. Short Blinks in every 1o sec then connected with SERVER. Yellow: – GPS Signals Receiving. |
| Housing Specification | |
| Housing Type | ABS Plastic |
| Connector | 6 Pin Micro fit |
| Dimensions | Length- 75mm Length with harness- 180mm Thickness- 25mm Width-70mm |

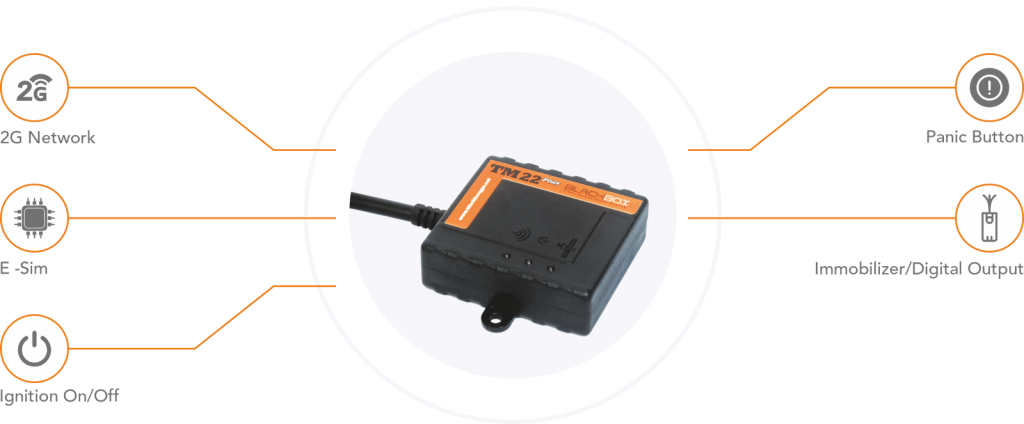

- 2G Network
- E-Sim
- Ignition On/Off
- Panic Button
- Immobilizer/ Digital Output
- RS232 (Optional)
Other Related Products

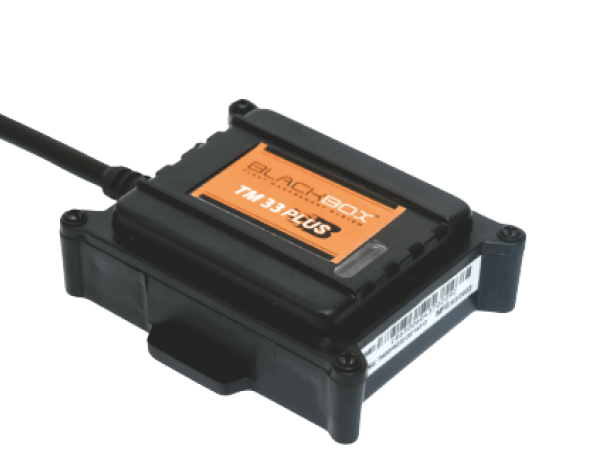

BlackBox TM33+ GPS Vehicle Tracker
